Expressway Fence Mesh Size 50*200mm Welded Fence Mesh Panel Welding Equipment

Welded Fence Mesh Panel Welding Equipment Introduction:

The welded fence mesh panel welding equipment is used to make 3d fence mesh panel. The equipment adopt PLC and touch screen. It is very easy and convenient to operate. The mesh size is adjustable according to your requirement. The line wire and cross wire feeding automatically. And bending machine is working automatic. This is full-automatic type equipment to make fence mesh panel. Only need one worker to operate. The finished product is widely used in expressway,railway,airport,park fence protection.

Welded Fence Mesh Panel Welding Equipment Features:

1. Upper copper wire connect with the upper electrodes and lower electrodes base directly. Lower electrodes size 20*20*20mm,each of 6 sides can be used.

2. The welded fence mesh panel welding equipment use Panasonic PLC. Make sure the machine is working stable and smooth.

3. The welded fence mesh panel welding equipment use cast water cooling system welding transformer.

4. Famous brand servo motor (Panasonic brand) for pulling mesh.

5. The hook of the mesh pulling car controlled by air cylinder, up and down for recycle pulling mesh.

6. The line wire and cross wire both pre-cut by wire straightening cutting machine. The line wire is feeding by the hopper device to drop the line wire into the mould automatically. The cross wire feeding by stepping motor controlled. And the mesh panel will be bending automatically when the mesh panel is send to the under the bending machine. After bending the pulling mesh car will pull out the fence mesh automatically and drop the fence mesh automatically.

7. The bending machine can bend different mesh size position according to your requirement. Because the bending machine is controlled by the control cabinet. Very easy to operate and intelligent.

8. Suitable material: low carbon wire, galvanized wire.

9. The pressure is 100T of the mesh bending machine. So bend wire diameter 6mm is Ok. And the bending machine is bending fence mesh automatically.

10. The welded fence mesh panel welding equipment only need one person to operate.

11. The biggest advantage is that the welded fence mesh panel welding equipment is full-automatic. Line wire feeding automatic,cross wire feeding automatic, automatic welding, automatic pulling mesh, automatic bending, automatic pulling out fence mesh after bending. Finally. automatic drop mesh.

Welded Fence Mesh Panel Welding Equipment Technical Parameters:

We can design the machine according to your wire diameter,mesh hole size and mesh width.

Welded Fence Mesh Panel Welding Equipment Applications:

The welded fence mesh panel is widely used in highway fence, railway fence, bridge fence , temporary frame fence, peach fence, airport fence, garden fence, slope fence, Meige fence, prison fence, factory fence, warehouse fence, municipal fence, iron art fence, stadium fence.

Welded Fence Mesh Panel Welding Equipment Packing:

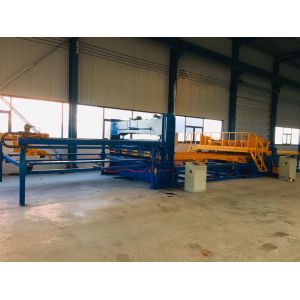

Welded Fence Mesh Panel Welding Equipment Photos:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
